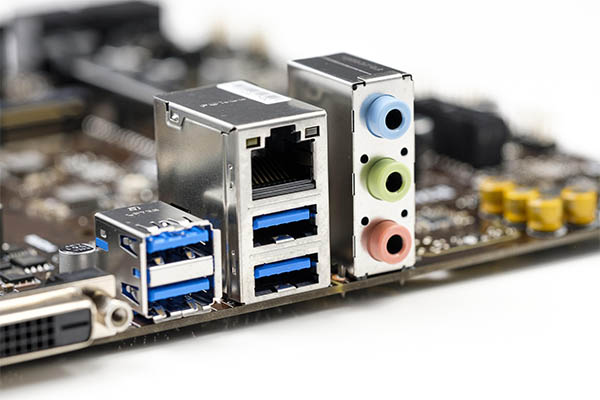

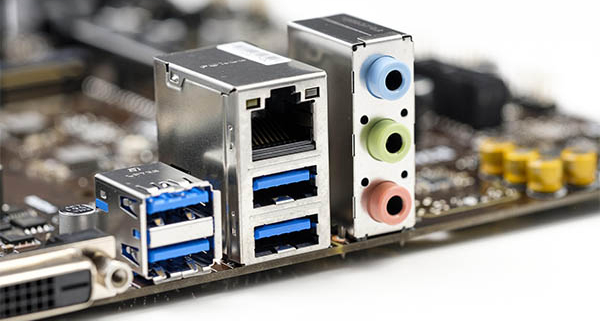

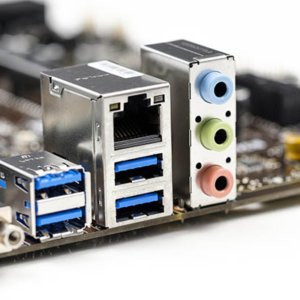

STACKED RJ45 OVER 2 USB TYPE Connector – Space-Saving Solution for Modern PCB Designs

What Is a STACKED RJ45 OVER 2 USB TYPE Connector?

RJ45 Ethernet Port

Typically 8P8C, shielded, with optional LEDs for signal feedback.

Dual USB Type Ports

Available in USB 2.0 or USB 3.0 versions depending on model requirements.

Stacked Vertical Configuration

RJ45 on top, dual USB below, designed for compact and efficient layouts.

Common Applications of STACKED RJ45 USB Connectors

• Network switches and routers
• Industrial PCs and control panels
• IoT gateways and embedded systems
• Medical and test equipment

Why Engineers and Buyers Choose This Connector

Space Optimization

Combines three ports into one compact module, ideal for edge devices and tight enclosures.

Simplified Assembly

Single footprint reduces soldering steps and improves production efficiency.

EMI Shielding & LED Indicators

Shielded housing and optional green/yellow LEDs enhance signal integrity and user feedback.

Cost Efficiency

Fewer components and placements reduce the total cost of ownership.

G-Layer Featured Product

• Configuration: RJ45 over 2 USB Type C
• Mounting: Right-angle PCB through-hole
• Shielding: Yes
• LEDs: Green/Yellow
• Contact Plating: 6μ” Gold
• Applications: Industrial, telecom, consumer electronics

Ready to Source?

Whether you’re prototyping or scaling up production, the STACKED RJ45 OVER 2 USB TYPE connector is a smart investment in performance and efficiency. Contact us today to explore datasheets, MOQ options, and lead times tailored to your region.
