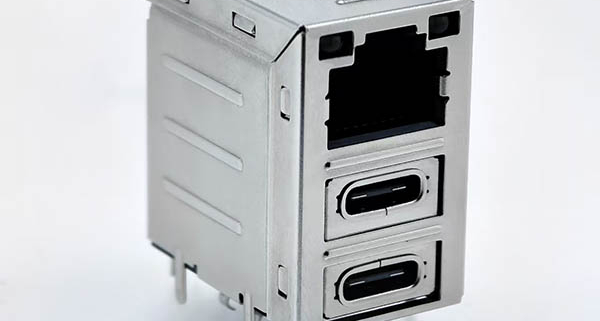

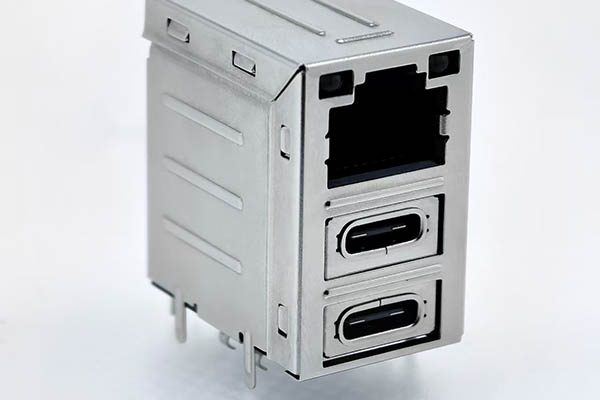

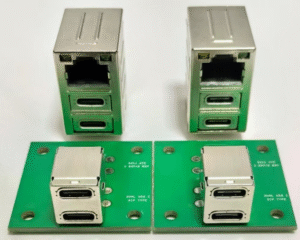

RJ45 USB Combo Connectors: Engineering Synergy for Advanced Connectivity

1. Structural Integration & Electrical Architecture

Pinout Mapping & Signal Integrity

RJ45 USB combo connectors integrate USB’s 4-pin interface (VBUS, D+, D-, GND) with RJ45’s 8P8C configuration. Shielded variants minimize EMI and support PoE applications.

Modular Design Philosophy

Unified form factors with IP67-rated housings ensure backward compatibility with Cat5e/Cat6a while supporting USB 3.0/3.1. Gold-plated contacts deliver durability and low impedance.

2. Performance Benchmarks & Protocol Optimization

Dual-Channel Throughput

RJ45 delivers 1–10Gbps via 1000BASE-T to 10GBASE-T; USB supports USB 3.1 Gen 2 (10Gbps) with synchronous data and power delivery.

Latency & Reliability

Optimized PHY circuits achieve <100ns latency. Industrial-grade connectors operate from -40°C to 85°C, compliant with IEC vibration and corrosion standards.

3. Transformative Application Scenarios

Industrial Automation

Supports PLCs requiring Ethernet/IP for control and USB for programming, reducing cabinet clutter by 40%.

Outdoor Deployments

Waterproof IP68 variants serve 5G backhaul units, combining RJ45 SFP adapters with USB diagnostic ports.

Edge Computing & IoT

Consolidates Ethernet sensor data aggregation and USB edge AI storage modules for smart buildings.

4. Design Advantages Over Discrete Solutions

Space Efficiency

Reduces footprint by up to 60% compared with separate connectors.

Enhanced Signal Integrity

Unified grounding improves SNR by 15dB and eliminates ground loops.

Operational Efficiency

USB hot-swappability enables reconfiguration without downtime, while Auto-MDIX simplifies cabling.

5. Implementation Guidelines & Standards Compliance

Wiring Schemes

Interface	Pin	Function
RJ45	1-2	TX_D1+/- (PoE+)
RJ45	3-6	RX_D2+/-
USB 3.0	VBUS	+5V (Power)
USB 3.0	D+/D-	Differential Data

Certification Requirements

Complies with UL 60950-1 (safety), FCC Part 15B (EMC), and IEC 60601-1 (medical) for domain-specific deployments.

6. Future Evolution: Multi-Gigabit & Optical Integration

Next-gen RJ45 USB combo connectors will integrate USB4 v2.0 (80Gbps), NBase-T, and optical transceivers for 200m reach in Industry 4.0 deployments.

Conclusion: Strategic Connectivity Convergence

The RJ45 USB combo connector exemplifies engineered interoperability. By merging power, data, and control into one unified port, it enables scalable, reliable, and future-proof connectivity across enterprise, industrial, and IoT domains.
