Mini SAS Cables: Bridging SAS and SATA for High-Speed SSD Connectivity

In today’s enterprise storage landscape, Mini SAS cables have become essential for building high-speed, space-efficient server and workstation designs. By combining compact connectors with reliable signal integrity, Mini SAS cables deliver the performance required for modern data centers, RAID arrays, and industrial computing platforms.

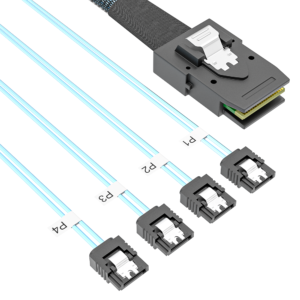

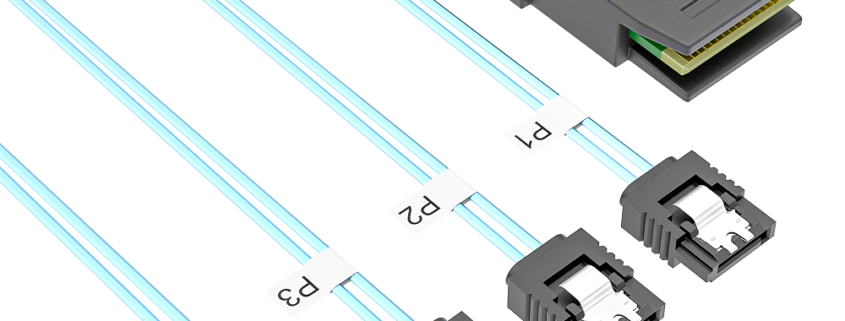

One of the most versatile solutions is the Mini SAS SFF-8087 36P to 4 SATA 7P SAS to SATA 3.0 SSD connection cable, designed to link SAS host bus adapters (HBAs) directly to SATA drives. This cable enables seamless integration of SAS controllers with SATA 3.0 solid-state drives, offering engineers and IT managers a cost-effective way to expand storage capacity without sacrificing speed or reliability.

High-Speed Transmission with Compact Design

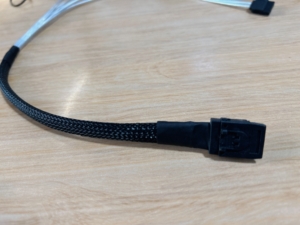

The SFF-8087 connector is a 36-pin Mini SAS interface with a plastic locking mechanism, widely used on Mini SAS 4i array cards. It supports 6Gbps data transfer rates under SAS 2.0, ensuring stable throughput for demanding workloads.

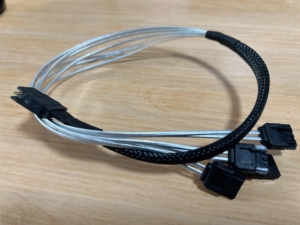

On the other end, the 4 SATA 7P connectors provide direct compatibility with SATA 3.0 drives, supporting 6Gbps transmission speeds and hot-plug functionality. This dual compatibility allows engineers to consolidate SAS and SATA devices into one streamlined cabling solution.

Cable specifications include:

Length options: 0.5m, 0.8m, 1.0m (customizable)
Wire size: 30AWG tinned copper, OD 0.9 × 2.3mm
Locking latch for secure mating
Gold plating: Au ≥30u” over Ni ≥100u”
Cable color: white with black molding
Flame rating: Cable horizontal flame, PCB 94V-0, PBT 94V-0

Versatility Across Storage Interfaces

Modern systems often require hybrid connectivity between SAS controllers and SATA drives. Traditionally, separate cabling increased complexity and consumed valuable rack space. The Mini SAS SFF-8087 to 4 SATA cable solves this challenge by offering multi-protocol compatibility, enabling seamless integration of HDDs, SSDs, RAID controllers, and storage subsystems.

This versatility ensures that system upgrades and expansions remain simple, cost-effective, and scalable. Engineers can deploy SAS HBAs while leveraging the affordability and speed of SATA 3.0 SSDs, achieving balanced performance across enterprise environments.

Reliability and Signal Integrity

Signal integrity is critical in high-performance computing. The Mini SAS SFF-8087 to SATA cable is engineered with:

Connector impedance: 100Ω ±15%
Cable impedance: 100Ω ±10%
Pair matching: ±5Ω
Common mode impedance: 25–40Ω
Insertion loss: -6dB up to 4.5GHz
Crosstalk: -26dB up to 6GHz

Electrical ratings include:

Current rating: 0.5A per pin
Voltage rating: 30VAC per contact
Dielectric withstand: 500V AC for 1 minute
Insulation resistance: ≥1000 MΩ
Contact resistance: ≤30mΩ initial, ≤15mΩ after stress testing

Mechanical performance is equally robust, tested under EIA 364-13 standards with mating forces up to 55N for Mini SAS and 45N for SATA connectors.

With compliance to RoHS 2.0, China RoHS, and REACH SVHC, these cables meet international environmental standards, ensuring safe and sustainable deployment.

Applications Across Industries

The adaptability of Mini SAS cables makes them suitable for a wide range of applications:

Data centers: High-density racks benefit from compact, high-speed cabling.
Enterprise servers: Reliable connections between SAS controllers and SATA SSDs ensure uninterrupted performance.
Industrial computing: Embedded systems and automation platforms gain scalable storage connectivity.
Workstations: Professionals in media, design, and engineering enjoy faster access to large datasets.
RAID arrays: Efficient cabling supports redundancy and high-speed data throughput.

Why Choose Us as Your Cable Manufacturer？

As a professional manufacturer, we specialize in high-speed interconnects and precision cable assemblies. Our Mini SAS cables—including the SFF-8087 36P to 4 SATA 7P SAS to SATA 3.0 SSD cable—are built for performance, durability, and ease of use.

Partnering with us means:

Direct factory supply with competitive pricing
Strict quality assurance and international certifications
Customization options for length, angle, and connector type
Technical support for modern server and storage design challenges

Conclusion

Mini SAS cables—especially the SFF-8087 to 4 SATA 7P SAS to SATA 3.0 SSD connection cable—are more than just connectors. They are strategic components in building smarter, faster, and more scalable systems.

With their compact footprint, reliable performance, and broad compatibility, Mini SAS cables represent the future of high-speed interconnect solutions in enterprise electronics.

Explore our full range of Mini SAS solutions at http://www.wahsondg.com. Whether you’re prototyping or scaling up production, Mini SAS cables are a smart investment in performance and efficiency. Contact us today to explore datasheets, MOQ options, and lead times tailored to your region.
