Mini SAS Cables | SFF-8087 to SFF-8087 Left-Angle Server Data Cable Manufacturer

Why Mini SAS Cables Are the Smart Choice for High-Speed Data Transmission？

Mini SAS cables have become the preferred solution for modern storage and server designs, offering compact, high-density connections with reliable high-speed performance. For engineers, IT managers, and product developers, adopting Mini SAS cables means streamlined layouts, enhanced bandwidth, and future-ready compatibility in enterprise and industrial applications.

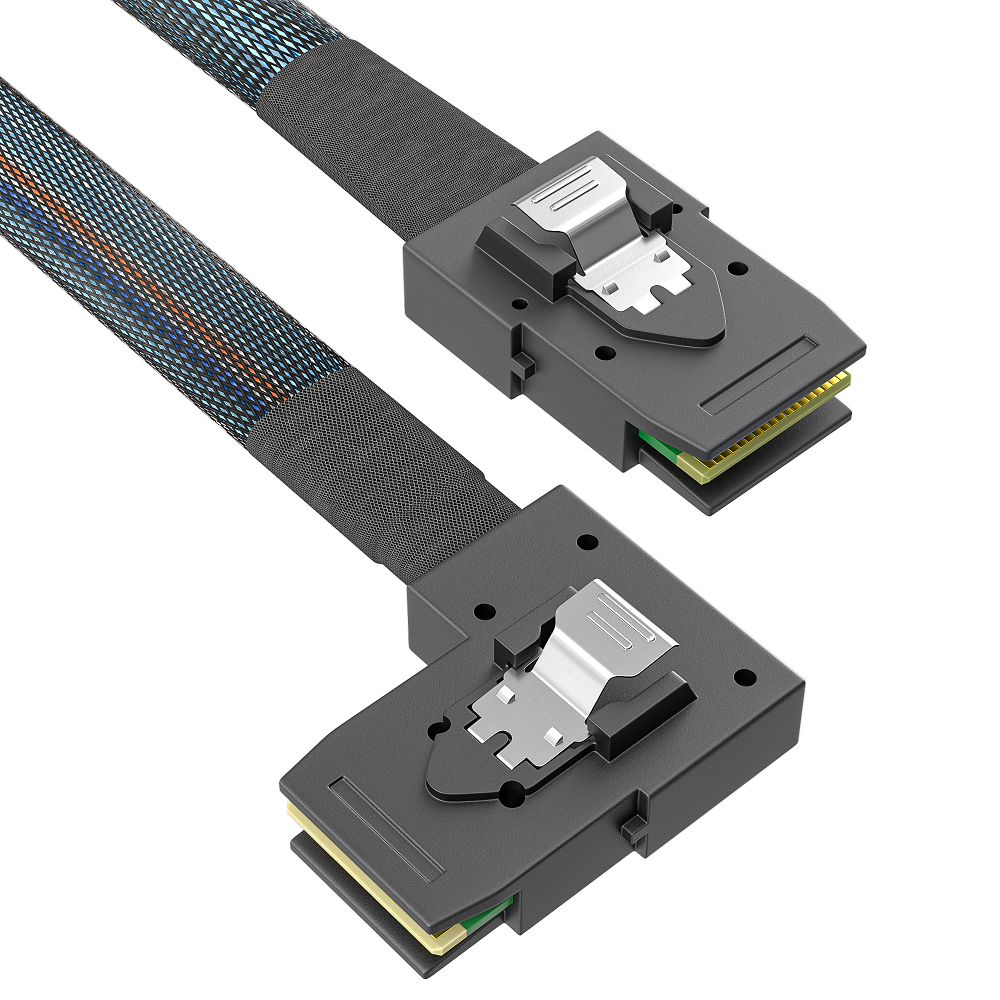

Among the most popular options is the Mini SAS SFF-8087 to SFF-8087 left-angle server data cable, designed specifically for internal SAS connections in space-constrained environments. This cable combines robust mechanical design with superior signal integrity, making it ideal for high-performance servers, RAID arrays, and rack-mounted systems.

High-Speed Transmission with Compact Design

Mini SAS cables support data transfer rates of up to 6Gbps under SAS 2.0 and can scale to 12Gbps in advanced configurations, ensuring reliable performance for demanding workloads. The SFF-8087 connector, a 36-pin Mini SAS interface with a plastic locking mechanism, is widely used on Mini SAS 4i array cards. It enables seamless internal SAS interconnects between host bus adapters (HBAs) and SAS drive subsystems.

The left-angle design of the SFF-8087 to SFF-8087 cable provides additional flexibility in tight server racks, reducing strain on connectors and improving airflow management. By consolidating multiple lanes into one compact assembly, engineers can reduce clutter, save valuable rack space, and achieve cleaner layouts.

Versatility Across Storage Interfaces

Modern systems often require flexible connectivity between SAS, SATA, and PCIe devices. Traditionally, separate cables consumed more space and complicated wiring. Mini SAS cables solve this challenge by offering multi-protocol compatibility, enabling seamless connections between HDDs, SSDs, RAID controllers, and storage arrays.

The SFF-8087 internal connector pairs with its external counterpart, SFF-8088, both supporting up to four ports (four channels) of SAS data. This versatility ensures that system upgrades and expansions remain simple, cost-effective, and scalable.

Reliability and Signal Integrity

Signal integrity and durability are critical in enterprise environments. Mini SAS cables are engineered with:

• Matched connector impedance: 100Ω ±15%
• Cable impedance: 100Ω ±10%
• Low insertion loss: -6dB up to 4.5GHz, -11dB up to 9GHz
• Minimal crosstalk: -35dB up to 6GHz

These specifications guarantee stable transmission, even under heavy workloads. Mechanical performance is equally robust, with mating forces tested under EIA 364-13 standards, ensuring long-term reliability.

Electrical ratings include:

• Current rating: 0.5A per pin
• Voltage rating: 30V per contact
• Dielectric withstand: 500V for 1 minute without failure
• Insulation resistance: ≥1000 MΩ

With RoHS 2.0, China RoHS, and REACH SVHC compliance, these cables meet international environmental standards.

Applications Across Industries

The adaptability of Mini SAS cables makes them suitable for a wide range of applications:

• Data centers: High-density storage racks benefit from compact, high-speed cabling.
• Enterprise servers: Reliable connections between RAID controllers and drives ensure uninterrupted performance.
• Industrial computing: Embedded systems and automation platforms gain scalable storage connectivity.
• Workstations: Professionals in media, design, and engineering enjoy faster access to large datasets.

Why Choose Us as Your Cable Manufacturer

As a dedicated manufacturer, we provide not only high-quality Mini SAS cables but also tailored solutions to meet customer needs. Our expertise in high-speed interconnects and precision cable assemblies ensures that every product is designed for performance, compliance, and ease of use.

By choosing us, customers benefit from:

• Direct factory supply with competitive pricing
• Strict quality assurance and international certifications
• Customization options for different lengths and configurations
• Technical support for modern storage and server design challenges

Conclusion

Mini SAS cables—especially the Mini SAS SFF-8087 to SFF-8087 left-angle server data cable—are more than just a connection. They are a strategic choice for engineers seeking smarter, faster, and more scalable designs. With their compact footprint, reliable performance, and wide application range, they represent the future of high-speed interconnect solutions in modern electronics.

Partnering with a trusted cable manufacturer ensures that your systems remain competitive, efficient, and ready for tomorrow’s innovations.

Explore our full range of Mini SAS solutions at http://www.wahsondg.com. Whether you’re prototyping or scaling up production, Mini SAS cables are a smart investment in performance and efficiency. Contact us today to explore datasheets, MOQ options, and lead times tailored to your region.
