Mini SAS Cables: High‑Performance Internal Connectivity with SFF‑8087 to HD SFF‑8643 Right‑Angle Solutions

Mini SAS Cables: High‑Performance Internal Connectivity with SFF‑8087 to HD SFF‑8643 Right‑Angle Solutions

Discover high‑performance Mini SAS cables engineered for servers, RAID arrays, and data‑intensive enterprise environments. Our SFF‑8087, SFF‑8643, and SFF‑8088 cable solutions deliver reliable 6Gbps–12Gbps connectivity with superior signal integrity. As a factory‑direct manufacturer, we offer customizable lengths, connector orientations—including right‑angle (内弯) designs—and global shipping to support your project needs.

Optimized for Modern Servers and High‑Density Storage

In today’s enterprise IT landscape, the demand for high‑speed, reliable, and space‑efficient connectivity continues to rise. Data centers, enterprise servers, and industrial computing platforms rely on robust internal cabling to maintain seamless communication between host systems and storage devices. Mini SAS technology has become a trusted standard thanks to its compact footprint, excellent signal integrity, and scalable performance.

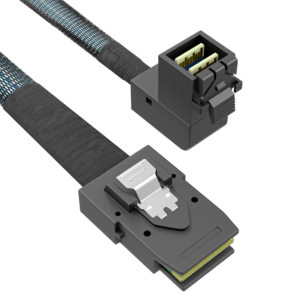

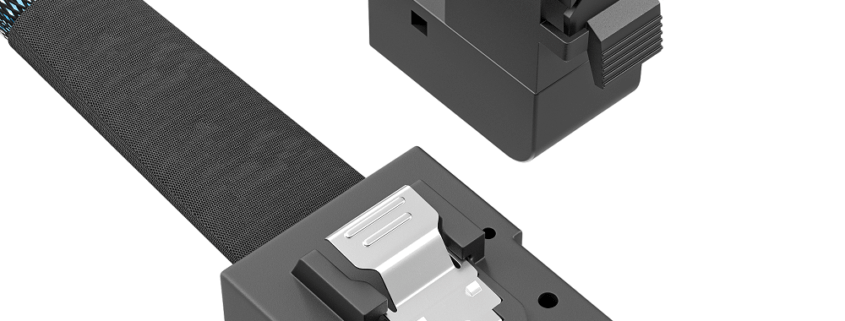

Among the most essential internal connectivity solutions is the Mini SAS SFF‑8087 to HD Mini SAS SFF‑8643 right‑angle high‑speed cable, designed specifically to bridge SAS 2.0 and SAS 3.0 architectures. The right‑angle (内弯) connector design provides improved cable routing in tight server spaces, making it ideal for high‑density racks, compact chassis, and systems with strict airflow requirements.

High‑Speed Transmission with a Compact, Right‑Angle Design

SFF‑8087 (Mini SAS 4i) — Internal SAS 2.0 Interface

The SFF‑8087 connector is a 36‑pin Mini SAS interface featuring a plastic latch mechanism. It is widely used on Mini SAS 4i RAID cards and SAS HBAs to connect internal drive subsystems. Fully compliant with SAS 2.0, it supports:

• 6Gbps data transfer rate
• Up to 4 SAS lanes
• Stable performance for bandwidth‑intensive server workloads

SFF‑8643 (HD Mini SAS) — Internal SAS 3.0 Interface

The SFF‑8643 connector is a 36‑pin HD Mini SAS interface designed for next‑generation internal SAS connections. Built with a compact plastic housing, it supports:

• SAS 3.0 standard (Revision 5a)
• 12Gbps high‑speed data transmission
• High‑density storage backplanes and RAID controllers

Right‑Angle (内弯) Design for Space‑Restricted Environments

The right‑angle SFF‑8643 connector provides:

• Improved cable management
• Reduced strain on connectors
• Better airflow in compact server chassis
• Ideal routing for vertical or horizontal backplanes

Together, SFF‑8087 and SFF‑8643 support up to four SAS channels, enabling seamless connectivity between legacy SAS 2.0 hardware and modern SAS 3.0 storage devices.

Technical Specifications:

Electrical Performance

• Current rating: 0.5A per pin
• Voltage rating: 30VAC per contact
• Contact resistance: ≤30mΩ initial, ≤15mΩ after stress testing
• Dielectric withstand: 500VAC for 1 minute
• Insulation resistance: ≥1000MΩ

Signal Integrity

• Connector impedance: 100Ω ±15%
• Cable impedance: 100Ω ±10%
• Pair‑to‑pair matching: ±5Ω
• Common‑mode impedance: 25–40Ω
• Insertion loss:
  • ≤‑6dB up to 4.5GHz
  • ≤‑11dB up to 9GHz
• Crosstalk suppression: ‑35dB up to 6GHz

Mechanical Performance

• Mating force: ≤100N
• Unmating force: ≤50N
• Tested under EIA 364‑13 at 25mm/min insertion/extraction speed

Environmental Compliance

• RoHS 2.0 compliant
• China RoHS compliant
• REACH SVHC compliant

These specifications ensure stable throughput, excellent durability, and reliable performance even in high‑density, high‑temperature server environments.

Application Scenarios:

The Mini SAS SFF‑8087 to HD Mini SAS SFF‑8643 right‑angle cable is widely used in:

• RAID arrays – High‑speed redundancy and data protection
• Workstations – Ideal for engineering, media, and design workloads
• Rack‑mounted servers – Optimized for dense storage configurations
• Enterprise servers – Reliable SAS connectivity for mission‑critical tasks
• Storage enclosures – Expands internal drive interfaces

Its compatibility with both SAS 2.0 and SAS 3.0 makes it especially valuable for hybrid systems combining legacy and next‑generation hardware.

Why Partner with Us?

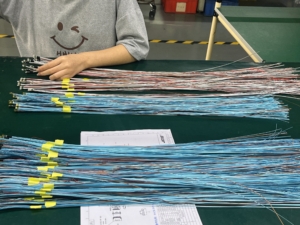

As a professional manufacturer of high‑speed interconnects and precision cable assemblies, we deliver Mini SAS solutions engineered for performance, durability, and ease of integration.

Partnering with us means:

• Factory‑direct supply with competitive pricing
• Strict quality control and international certifications
• Customizable lengths, angles, and connector configurations
• Engineering support for modern server and storage system design

Whether you need standard Mini SAS cables or fully customized assemblies, our expertise ensures your infrastructure remains reliable and scalable.

Conclusion:

Mini SAS cables—especially the SFF‑8087 to HD SFF‑8643 right‑angle high‑speed cable—play a crucial role in building smarter, faster, and more scalable storage systems. With support for both SAS 2.0 and SAS 3.0, these cables offer exceptional flexibility for system upgrades, hybrid deployments, and next‑generation enterprise environments.

Their compact footprint, robust performance, and broad compatibility make Mini SAS cables a future‑proof choice for high‑speed internal interconnect solutions.

👉 Explore our full range of Mini SAS products at http://www.wahsondg.com Whether you are prototyping or scaling up production, our Mini SAS cables deliver the performance and reliability your systems demand. Contact us for datasheets, MOQ details, and lead times tailored to your region.
