Mini SAS HD High-Speed Cables Direct from Factory 5-Step One-Stop Service

Mini SAS HD High-Speed Cables Direct from Factory | 5-Step One-Stop Service

Mini SAS HD High-Speed Cables are high-density, high-speed interconnect solutions primarily used in data centers, storage area networks, and high-performance computing environments for reliable data transmission. These cables comply with SFF-8643 (for internal applications) and SFF-8644 (for external applications) industry standards, supporting data transfer rates of up to 12 Gbps per channel and offering configurations such as 4x (4 channels) or 8x (8 channels) to enhance bandwidth capacity. Key features include robust shielding with aluminum foil and copper braiding to maximize signal integrity and reduce electromagnetic interference (EMI), an integrated EEPROM for host recognition and auto-configuration, and a durable pull-to-release latching mechanism that ensures secure connections. Available in AWG sizes like 26, 28, and 30, with lengths ranging from 0.5 meters to 7 meters, Mini SAS HD High-Speed Cables provide flexibility in routing and are designed to support protocols such as SAS 3.0, InfiniBand, and Ethernet. They are commonly deployed to connect servers to storage devices, host bus adapters (HBAs), RAID controllers, and switches, facilitating efficient large-scale data processing and storage expansion. The versatility of Mini SAS HD High-Speed Cables, http://www.wahsondg.com,  also extends to active optical cables for longer distances and hybrid versions that enable smooth migration from 6 Gbps to 12 Gbps infrastructure.





What is Mini SAS & Mini SAS HD High-Speed Cables?

Mini SAS (Small Form Factor Serial Attached SCSI) is a compact, high-speed connector standard designed to link storage devices, servers, and enterprise arrays. It follows SFF-8086/8087/8088 specifications and supports SAS 2.0/2.1 as well as PCIe applications. With its multi-lane design, Mini SAS enables efficient internal and external storage connections, providing reliable bandwidth for enterprise-level systems.

Mini SAS HD (Mini Serial Attached SCSI High Density) is the next-generation upgrade of Mini SAS. It complies with SFF-8643 (internal) and SFF-8644 (external) standards, supporting up to 12Gbps data transfer rates. Compared with traditional Mini SAS, Mini SAS HD offers significantly higher port density—up to 12, 24, or even 48 lanes—while saving 30–50% PCB space. This makes it ideal for high-density servers, data centers, and applications requiring both speed and scalability. Mini SAS HD also supports both copper cables for short-distance transmission and fiber optics for long-distance, high-bandwidth requirements.

Technical Advantages:

  • High-Speed Transmission: Up to 12Gbps, suitable for high-performance computing and enterprise storage.
  • High-Density Design: Multiple lanes allow more devices to be connected within limited space.
  • Strong Compatibility: Fully compatible with SATA 3.0 and SAS 3.0, supporting HDDs, SSDs, and RAID controllers.
  • Flexible Media: Copper cables for short-range, fiber optics for long-distance and high-bandwidth needs.

Application Scenarios:

  • Data Centers: Mini SAS HD provides multi-port high-speed connectivity, enabling fast data access and backup between servers and storage devices.
  • Enterprise Storage & RAID Arrays: Supports large-scale RAID systems with high concurrent read/write operations, ensuring both performance and reliability.
  • High-Performance Computing (HPC): Essential for big data analytics, machine learning, and AI applications where bandwidth and low latency are critical.
  • Server Expansion: Connects multiple HDDs or SSDs to increase overall storage capacity.

Our Factory Advantage:



Discover Mini SAS HD High-Speed Cables direct from our factory. We provide a 5-step one-stop service: prototyping, small batch orders, mass production, strict quality inspection, and fast global delivery. Supporting up to 12Gbps data transfer and high-density port connections, our cables are ideal for servers, RAID arrays, and data centers. Certified quality, bulk customization, and reliable performance for worldwide customers.

Beyond the technology itself, choosing the right supplier is crucial. We are a direct manufacturer of high-speed cables, specializing in Mini SAS and Mini SAS HD solutions. Unlike trading companies, we provide end-to-end service for our customers:

  • Prototyping (打样): Rapid sample development to validate design and performance.
  • Small Batch Orders (小批量订单): Flexible production for pilot runs or niche requirements.
  • Mass Production (大货生产): Scalable manufacturing capacity to meet large-volume demands.
  • Quality Inspection (品质检验): Strict testing procedures ensure every cable meets international standards.
  • Logistics & Shipment (安排出货): We handle packaging and global delivery directly from our factory, ensuring efficiency and reliability.

This one-stop service model guarantees that customers receive not only high-quality products but also seamless project execution from concept to delivery.

Conclusion:

Mini SAS and Mini SAS HD are critical technologies for modern storage and computing environments, offering high-speed, high-density, and highly compatible solutions. By partnering with us, customers gain access to a direct factory supplier, http://www.wahsondg.com, with full control over production, quality, and logistics. Whether it’s prototyping, small batch orders, or large-scale shipments, we provide a complete one-stop service, ensuring that every project is delivered with precision, speed, and reliability.

/0 Comments/by

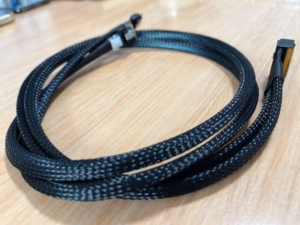

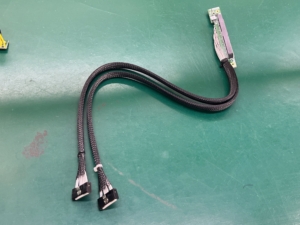

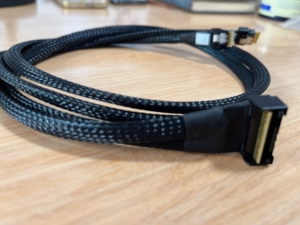

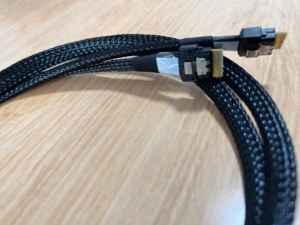

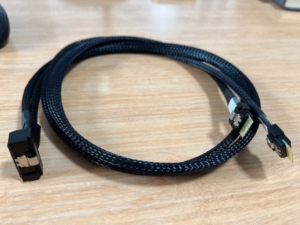

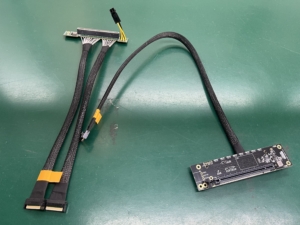

SFF8654 8I LP RA to Dual SFF8654 Cable – SlimSAS Storage Solution

SFF8654 8I LP RA to Dual SFF8654 Cable – SlimSAS Storage Solution: Your High-Density Storage Expansion Partner​

Direct factory in China offering SFF8654 8I LP RA to Dual SFF8654 Cable – SlimSAS Storage Solution

In today’s data-intensive applications, efficient storage expansion solutions are crucial for servers, data centers, and workstations. The SFF8654 8I LP RA to Dual SFF8654 Cable​ (SlimSAS interface) splits a single 8-lane (8I) host port into two 4-lane (4I) interfaces, significantly enhancing storage density and system flexibility while ensuring signal integrity and space efficiency . As a direct factory, http://www.wahsondg.com, we offer end-to-end solutions from design to production, with full customization capabilities to meet specific requirements for high-performance, high-reliability connectors .



Key Product Parameters: Engineered for High-Speed Transmission and Compact Spaces​
This SlimSAS cable is optimized for the demanding environments of modern servers and storage systems.

Key specifications include:
1.Interface Configuration: Host end: SFF-8654 8i 74-pin high-density connector (Low Profile, Right Angle design). Target end: Two SFF-8654 4i interfaces, supporting PCIe 4.0, SAS 4.0, and NVMe protocols .
2.Data Transfer Speed: Supports SAS 4.0 standards with speeds up to 24 Gbps per channel​ (aggregate bandwidth of 192 Gbps), while compatible with PCIe 4.0 x8 (16 GT/s) to meet high-speed NVMe SSD read/write demands .

Mechanical and Electrical Features:

1.Low-Profile Right-Angle (LP RA) Connector: Saves space in 1U/2U server racks, avoiding interference with adjacent components .
2.Durability: Gold-plated contacts (rated for ≥250 mating cycles), impedance control (100Ω±10%), compliant with SAS 4.0 signal specifications .
3.Shielding Design: Dual-shield technology (foil + braided mesh) reduces electromagnetic interference (EMI) and ensures data integrity .
4.Cable Specifications: Customizable lengths (commonly 0.5m to 1m), 30AWG tinned copper conductors, PVC/nylon jacket, operating temperature: -40°C to 85°C .
5.Application Scenarios: Empowering High-Density Storage and High-Performance Computing​
This SFF8654 8I to Dual SFF8654 cable​ excels in the following scenarios:

Server and Data Center Storage Expansion​:
Expands a single SlimSAS 8I port on a motherboard or HBA (Host Bus Adapter) into two 4I interfaces, connecting U.2 NVMe SSDs or SAS HDDs to double storage density. For example, in a 1U server, a single cable can manage 8 NVMe SSDs, optimizing rack space utilization .

1.High-Performance Workstations (AI/Media Processing)​
Provides high-speed storage links for workstations handling 4K video editing, AI training, and other bandwidth-intensive applications. Through PCIe bifurcation (x4/x4/x4/x4), each NVMe SSD is allocated an independent lane to avoid bottlenecks .
2.Customized Storage Arrays and JBOD Systems​
The right-angle design simplifies cable routing in custom storage solutions, improving airflow efficiency. Combined with RAID configurations, it enables high-availability storage pools for financial analysis or scientific simulation scenarios .
3.Factory Advantages: End-to-End Customization and Quality Assurance​

As a direct factory, we are committed to providing comprehensive support:


1.End-to-End Control: Automated production lines from connector stamping, cable assembly, to shielding treatment ensure consistency (e.g., impedance tolerance ≤10%) .
2.Customization Flexibility: Supports customization of length, angle (straight/right-angle), shielding grade, and wire gauge (28AWG–34AWG), with sample delivery in as fast as 7 days .
3.Quality Certification: Compliant with SAS 4.0, PCIe 4.0, and RoHS standards, offering a 12-month warranty, and supporting small-batch trials to large-scale deliveries (minimum order quantity: 2 pieces)

.

Why Choose Our SFF8654 8I to Dual SFF8654 Cable?​
1.Maximized Bandwidth: Utilizes a single cable to achieve dual 4I links, balancing PCIe 4.0 x8 bandwidth (64 Gbps) for parallel I/O operations .
2.Reliability Assurance: Dual-shield design and 250+ mating cycles ensure 24/7 continuous operation .
3.Cost-Effectiveness: Direct factory supply eliminates middlemen, offering prices 15%–30% lower than market equivalents (e.g., ~$17–20 for a 1m model) .

Conclusion​：
The SFF8654 8I LP RA to Dual SFF8654 Cable​ is a critical component for storage expansion, combining high-speed performance with space efficiency. Whether upgrading data centers or building high-performance workstations, our direct factory​ supply chain and customization services provide reliable support. Contact us today for tailored solutions and technical documentation!

/0 Comments/by

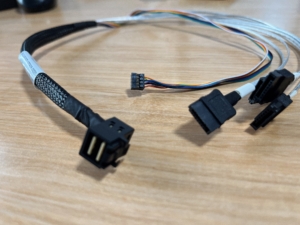

HD Mini SAS SFF8643 to SATA4+8P Cable – High-Speed Storage Expansion Solution

Unlock High-Density Storage: A Deep Dive into the HD Mini SAS SFF-8643 to 4x SATA Cable

The HD Mini SAS SFF8643 to SATA4+8P Cable is the ideal solution for professionals seeking reliable storage expansion. With advanced design and stable performance, this cable connects SAS controllers to multiple SATA drives, ensuring fast data transfer and secure power delivery. As a direct factory in China, we specialize in producing high‑quality mini sas to sata cables http://www.wahsondg.comthat meet global standards. Whether you are building enterprise servers, RAID systems, or upgrading workstations, our mini sas to sata products provide the perfect balance of speed, durability, and cost‑effectiveness. Choosing our mini sas to sata cable means investing in efficiency, scalability, and trusted manufacturing expertise.

Mini sas to sata solutions are essential for modern storage expansion, and the HD Mini SAS SFF8643 to SATA4+8P Cable stands out as a high‑performance option. Designed to connect SAS controllers with multiple SATA drives, this cable delivers stable power, fast data transfer, and reliable compatibility for enterprise servers, RAID systems, and professional workstations. As a direct factory http://www.wahsondg.com in China specializing in the production of mini sas to sata cables, we ensure competitive pricing, strict quality control, and global supply capability to meet diverse customer needs.

In the evolving landscape of data storage, efficiency and reliability are paramount. The HD Mini SAS SFF-8643 to 4x SATA cable​ emerges as a critical component for modern IT infrastructure, enabling seamless integration of high-capacity storage devices into servers and workstations. This advanced SFF-8643 to SATA cable​ is engineered to support demanding applications, from data centers to creative studios. Let’s explore its specifications and use cases to understand why it’s a staple in today’s storage solutions.

Upgrade storage with HD Mini SAS SFF8643 to SATA4+8P cable. High‑speed, reliable mini sas to sata solution for servers, RAID, and data centers.



Product Parameters: Precision Engineering for Peak Performance

The HD Mini SAS SFF-8643 to 4x SATA cable​ is designed with meticulous attention to detail, ensuring compatibility and high-speed performance. Below are its key technical parameters

  • Interface Specifications:                                                                                                                        1.Host Side: Features a high-density Mini SAS HD (SFF-8643) 36-pin male connector with a secure latching mechanism.
  •  2.Target Side: Breaks out into four discrete 7-pin SATA connectors, enabling direct attachment to SATA hard drives or SSDs.
  • Data Transfer Performance: Supports bandwidth of up to 12 Gbps per channel​ (SAS 3.0 standard), facilitating a total throughput capable of handling multiple drives simultaneously. It maintains backward compatibility with 6 Gbps and 3 Gbps SATA protocols, ensuring versatility during system upgrades
  • Cable Construction: Utilizes high-quality materials like silver-plated pure copper conductors and nylon shielding, which minimize signal loss and electromagnetic interference. Standard lengths include 0.5 meters and 0.8 meters, with 30AWG wiring ensuring stable data transmission over distance
  • Key Features:
  • 1.Multi-lane Design: The single SFF-8643 to SATA cable​ consolidates four SAS/SATA lanes into one compact connector, reducing cable clutter in chassis interiors.                                                    2.Forward Fanout Configuration: This specific cable is a “forward” cable, meaning the SFF-8643 end is intended to connect to a host controller (like an HBA or RAID card), while the SATA ends connect directly to drives. It is crucial to distinguish this from “reverse” cables used for backplanes                                                                                                                                                          3.Durability: Connectors are built with robust materials and often include stainless-steel latches to prevent accidental disconnections in vibrating environments

Primary Application Scenarios: Where Power Meets Practicality

This versatile SFF-8643 to SATA cable​ finds its strength in scenarios that demand high-density storage links and reliable data throughput.

  1. Server and Data Center Storage Expansion: In servers, Host Bus Adapters (HBAs) and RAID controllers frequently feature internal Mini SAS HD SFF-8643 ports. This cable is ideal for connecting these cards to multiple SATA drives, enabling efficient direct-attached storage (DAS) configurations. It is particularly valuable for expanding storage capacity in servers without needing a dedicated backplane, supporting everything from large-scale HDDs to high-speed SATA SSDs
  2. High-Performance Workstations and NAS: For workstations used in video editing, 3D rendering, or scientific computing, internal drive bays can be fully utilized with this cable. It allows a single PCIe card with a Mini SAS SFF-8643 interface​ to support a multi-drive setup, which is perfect for configuring software RAIDs (e.g., RAID 0 for speed or RAID 1 for redundancy). Similarly, it’s a cost-effective solution for building custom Network-Attached Storage (NAS) systems with popular motherboards and HBAs
  3. Storage Arrays and Media Storage Systems: Custom storage arrays or media servers, which often incorporate multiple 2.5-inch or 3.5-inch drives, benefit greatly from the cable’s ability to streamline connections. By using a cable like the HD Mini SAS SFF-8643 to 4x SATA, system integrators can reduce internal cable clutter, improve airflow for better cooling, and create a more maintainable system structure

Conclusion: The Smart Choice for Scalable Storage

The HD Mini SAS SFF-8643 to 4x SATA cable​ stands out as a robust, high-speed solution for bridging the gap between modern storage controllers and proven SATA drive technology. Its ability to support 12 Gbps speeds​ while managing multiple drives through a single connector makes it an essential component for IT professionals and system builders aiming for efficiency and reliability. Whether you’re scaling a data center or building a powerful workstation, integrating this SFF-8643 to SATA cable​ is a strategic step toward optimizing your storage infrastructure.

When it comes to building reliable and high-performance storage systems, the HD Mini SAS SFF8643 to SATA4+8P* cable is the perfect solution. Designed for enterprise servers, data centers, and advanced workstations, this connector ensures seamless communication between SAS controllers and multiple SATA drives.

Detailed Product Parameters

  • Connector Type: HD Mini SAS SFF-8643 (Host) to 4x SATA + 8-pin Power
  • Interface Standard: SAS 3.0 / SATA III
  • Data Transfer Rate: Up to 12Gbps per lane (SAS) / 6Gbps (SATA)
  • Cable Lengths: Available in 0.5m, 1m, and custom lengths
  • Compatibility: Supports RAID configurations, JBOD, and hot-swappable SATA drives
  • Durability: High-quality copper conductors with shielding for EMI protection
  • Power Support: Integrated 8-pin connector for stable drive power delivery

Main Application Scenarios

  • Enterprise Servers: Connect multiple SATA drives to SAS controllers for scalable storage.
  • Data Centers: Optimize rack-mounted systems with efficient cabling and high-speed throughput.
  • Workstations: Ideal for video editing, CAD, and other applications requiring large storage arrays.
  • RAID Systems: Perfect for building RAID 0/1/5/10 arrays with reliable performance.

Why Choose HD Mini SAS SFF8643 to SATA*4+8P?

This cable bridges the gap between SAS controllers and SATA drives, making it a cost-effective solution for expanding storage capacity without compromising speed. Whether you’re upgrading a server or building a new storage system, the mini sas to sata connection ensures maximum efficiency and compatibility.

By integrating mini sas to sata technology, IT professionals can achieve faster data access, simplified cabling, and enhanced reliability. This makes the HD Mini SAS SFF8643 to SATA4+8P* cable a must-have for anyone looking to optimize storage infrastructure.

/0 Comments/by

High‑Speed Mini SAS Cables | Direct Factory Guide for Data Centers & HPC

Professional Guide: How to Choose a Reliable Direct Factory for High‑Speed Mini SAS Cables

In modern data centers, high‑performance computing clusters, and enterprise storage systems, High‑Speed Mini SAS Cables may look like small components, but they are the “lifeline” that ensures fast and stable data transmission. Partnering with a trustworthy direct factory http://www.wahsondg.com/high-speed-mini-sas cables not only guarantees cable quality but also helps control costs effectively. This guide explains how to select the right High‑Speed Mini SAS Cables manufacturer and highlights their critical applications in data‑intensive environments.

High‑Speed-Mini-SAS-Cables are the backbone of modern data centers, ensuring fast and reliable connections between servers, storage arrays, and HPC clusters. Choosing the right High‑Speed Mini SAS Cables from a direct factory means guaranteed compliance with SAS 3.0/4.0 standards, superior shielding against EMI, and customizable lengths for any installation. Whether you are upgrading enterprise storage or building next‑generation cloud infrastructure, High‑Speed Mini SAS Cables deliver the performance, density, and stability your systems demand.

1. How to Select a Professional Mini SAS Cable Direct Factory

✅ Certification & Standards Compliance

  • Ensure products meet SAS 2.1 / SAS 3.0 protocols and support SFF‑8643, SFF‑8654, SFF‑8087/8088 interfaces.
  • Example: SFF‑8643 supports up to 12Gbps per channel.
  • Look for factories with ISO9001 certification and compliance with RoHS / REACH environmental regulations.

✅ Technical Capability & Performance Evaluation

  • Signal Integrity: Differential delay < 10ps/m, insertion loss within ‑6dB.
  • Materials & Craftsmanship: Tinned or silver‑plated copper conductors, aluminum foil + copper braid shielding, durable connectors with enhanced pull‑to‑release latches.
  • Customization: Flexible options for cable length (0.5–7m), AWG sizes (26/28/30), and interface conversions (e.g., SFF‑8643 to SFF‑8654).

✅ Manufacturing Experience & Client References

  • Prefer factories specializing in SFP, QSFP, Mini SAS HD systems.
  • Review customer cases, especially collaborations with major server brands or large data centers (e.g., Huawei OceanStor).

✅ Cost & Supply Chain Stability

  • Direct factories offer competitive pricing with tiered discounts for bulk orders.
  • Evaluate delivery speed (1–3 days), OEM/ODM support, and after‑sales policies.

2. Applications & Key Roles of High‑Speed Mini SAS Cables

Core Application Areas

  • Data Centers & Cloud Computing: Fast server‑to‑storage connections.
  • High‑Performance Computing (HPC): Low‑latency inter‑node communication.
  • Enterprise Storage Systems: RAID controllers, disk arrays, backplanes.
  • Server Internal Connections: Linking motherboards, RAID cards, and SAS/SATA backplanes.

Key Roles

  • High‑Speed Transmission: Supports SAS 3.0 (12Gbps/channel).
  • High‑Density Connectivity: Mini SAS HD (SFF‑8643/8654) optimizes space and airflow.
  • System Reliability: Robust shielding and connectors reduce error rates.

3. Interface & Protocol Specifications

Interface TypeProtocolSpeedChannelsAggregate BandwidthTypical Applications
Mini SAS HD (SFF‑8643/8644)SAS 3.012Gbps/channel448GbpsServers, storage arrays, HBA cards
Mini SAS HD (SFF‑8643/8644)SAS 4.024Gbps/channel496GbpsNext‑gen HPC, advanced storage
Mini SAS (SFF‑8087/8088)SAS 2.06Gbps/channel424GbpsLegacy servers, storage devices
Highlights:
  • SFF‑8643/8644 is the mainstream standard, compact and high‑density.
  • SFF‑8654 is ultra‑compact, ideal for dense server backplanes.
  • Aggregate bandwidth = channel speed × number of channels.

4. Electrical Performance Parameters

ParameterUnitTypical ValueDescription
ImpedanceΩ100 ± 10Matches devices to minimize reflection
Insertion LossdB< 10.81 @ 32GHzLower loss = better signal
Intra‑Skewps/m≤ 4Ensures signal synchronization
NEXT CrosstalkdB< ‑35 @ 6GHzStrong anti‑interference
Return LossdB< ‑15Better impedance matching
Key Insight:
  • Silver‑plated copper conductors reduce high‑frequency resistance (skin effect).
  • Lower AWG values (thicker wires) extend transmission distance.

5. Mechanical & Physical Parameters

  • AWG Sizes: 30–24 AWG (smaller = thicker, longer reach).
  • Length Options: 0.5–7m, fully customizable.
  • Durability: ≥ 250 mating cycles.
  • Retention Force: ≥ 133.5N for secure locking.
  • Connector Types: Straight, right‑angle, side‑exit for flexible layouts.

6. Materials & Manufacturing Requirements

  • Conductors: Tinned copper (≤6G), silver‑plated copper (≥12G).
  • Insulation: Foamed PP or FEP for low dielectric loss.
  • Shielding: Aluminum foil + braided copper mesh, 360° EMI protection.
  • Jacket: PVC, TPU, or braided for abrasion resistance.
  • Compliance: RoHS & REACH certified.

Conclusion

Choosing a qualified High‑Speed Mini SAS Cables direct factory http://www.wahsondg.com/high-speed-mini-sas-cables
is like selecting a strategic partner — it requires careful evaluation of technical strength, quality control, industry experience, and service reliability. A premium Mini SAS cable may be a small component, but it is the silent guardian of your data center’s performance and stability.

We are a direct high‑speed mini sas cables manufacturer, committed to international standards, eco‑friendly compliance, and advanced materials. With strong customization capabilities and fast delivery, we provide the reliable backbone your servers and storage systems need.

/0 Comments/by

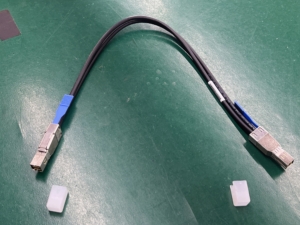

High-Speed Data Transmission Benchmark | HD MINI SAS SFF8644 to SFF8644 Cable Boosts Server Performance

High-Speed Data Transmission Benchmark! HD MINI SAS SFF8644 to SFF8644 Cable Boosts Server Performance

In today’s era of data explosion, enterprises demand ever higher speed and reliability from storage systems. As a critical component of modern data center storage, the HD MINI SAS SFF8644 to SFF8644 high-speed cable has become the essential bridge for efficient connections between servers and storage devices, truly setting a High-Speed Data Transmission Benchmark. And importantly, we are the direct manufacturer of high-speed data transmission cables, http://www.wahsondg.com ensuring both quality and cost-effectiveness for our customers.

Core Product Advantages: The Perfect Combination of Speed and Reliability

This HD MINI SAS SFF8644 to SFF8644 cable is a high-speed data transmission solution designed to meet the needs of modern data centers. Featuring the SFF-8644 high-density connector, it supports 12Gbps transmission rates and fully complies with SAS 3.0 standards, delivering unprecedented bandwidth for storage systems — a true High-Speed Data Transmission Benchmark.

Compared with traditional cables, this product achieves a qualitative leap in performance. Each Mini-SAS HD connector contains four channels, with a single port delivering up to 48Gb/s total throughput. This high-speed capability enables seamless handling of data-intensive applications such as big data, artificial intelligence, and machine learning, significantly improving system responsiveness and processing efficiency.

HD MINI SAS SFF8644 to SFF8644 cable, supporting 12Gbps speed and SAS 3.0 compatibility, with superior shielding and durability — the true high-speed data transmission benchmark that empowers data centers and servers with enhanced performance.

Superior Design and Durability

Manufactured with premium materials and precision craftsmanship, the zinc-alloy die-cast connector housing provides outstanding durability and enhanced electromagnetic interference resistance. The unique locking design ensures secure connections, maintaining stability even in vibration-prone environments and greatly reducing the risk of accidental disconnection.

In terms of cable specifications, multiple gauges are available (30, 28, 26, and 24 AWG). The smaller the number, the larger the conductor diameter and the lower the signal attenuation. This allows users to select the most suitable model based on transmission distance requirements for optimal performance. For example, 30 AWG cables are ideal for up to 3 meters, while 24 AWG cables can extend to 6–7 meters while still meeting industry standards.

Wide Application Scenarios

This Mini-SAS HD cable is the ideal choice for connecting servers and storage devices. It is widely used across data communication fields, including servers, rack-mounted servers, workstations, RAID systems, and storage enclosures. Whether in enterprise data centers or cloud computing environments, it delivers outstanding performance, fully embodying the value of a High-Speed Data Transmission Benchmark.

For enterprises requiring frequent high-volume data transfers — such as video editing, scientific computing, or large-scale database management — this cable’s superior performance is particularly evident. Its advanced shielding design effectively reduces signal loss and crosstalk, ensuring data integrity and accuracy.

Smart Maintenance and Long-Term Value

Investing in a high-quality HD MINI SAS SFF8644 to SFF8644 cable means laying a reliable foundation for storage systems. Compared with ordinary cables, it offers longer service life, lower maintenance costs, and greater overall value. As the direct manufacturer of high-speed data transmission cables, we guarantee consistent quality, reliable supply, and competitive pricing.

As SAS technology continues to evolve — from SAS-1 at 3.0 Gb/s, to SAS-2 at 6 Gb/s, and SAS-3 at 12 Gb/s — this cable is fully compatible with the latest standards while remaining backward compatible with earlier versions, safeguarding enterprise equipment investments.

Conclusion

In today’s accelerating digital transformation, choosing a high-performance, highly reliable data transmission cable is critical for enterprise storage systems. The HD MINI SAS SFF8644 to SFF8644 cable, with its exceptional performance, refined craftsmanship, and broad compatibility, is the ideal choice for connecting servers and storage devices, helping enterprises maintain a competitive edge in the data flood. It is not only a tool for performance enhancement but also the enterprise’s path to the future — a true High-Speed Data Transmission Benchmark.

Whether building a brand-new storage system or upgrading existing infrastructure, this high-speed cable will be the key factor driving enterprise data infrastructure to new heights. Choose quality, choose speed, choose reliability — and with us as the direct manufacturer of high-speed data transmission cables, http://www.wahsondg.com let professional solutions safeguard your enterprise growth.

/0 Comments/by

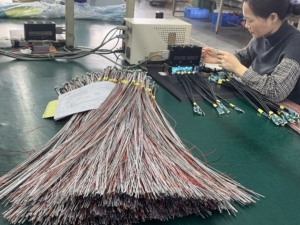

High-Speed Cable Manufacturer — MINI SAS, SAS, HD Cables Direct Supply

From Raw Materials to Finished Products: Unveiling the Strength of a High-Speed Cable Manufacturer — MINI SAS, SAS, HD Cables Direct Supply



In the era of information and big data, high-speed transmission has become the core requirement for servers and storage devices. As a direct manufacturer of high-speed cables, we adhere to the principle of “quality first, technology driven,” providing global customers with stable and reliable high-speed connectivity solutions. This article will take you through the entire process of high-speed cable production, from raw materials to finished products, showcasing the strength of our manufacturing capabilities.

1. Quality from the Source: Raw Materials and Technical Foundation

The quality of every high-speed cable begins with strict control of raw materials. We select high-purity copper and eco-friendly insulation materials that meet international standards, ensuring low loss, low latency, and excellent anti-interference performance during high-speed transmission. Our cables typically use silver-plated conductors and foamed insulation cores, which provide superior attenuation performance and low delay, guaranteeing accurate signal transmission and faster speeds.

On the technical side, we adopt both pair shielding and overall shielding structures, giving the cables excellent protection against external interference. The parallel pair structure ensures low skew and supports high-frequency broadband transmission. Cable specifications range from 30 to 24 AWG, with 2P, 4P, and 8P structures available to meet diverse application needs.

2. Precision Manufacturing: Modern Workshops and Processes

Step into our production workshop, and you will see automated equipment and rigorous processes. Manufacturing high-speed cables is a complex task that requires advanced equipment and mature, stable processes. Our production flow includes five critical stages, each subject to precise testing:

  • Insulated Core Extrusion: Using physically foamed polyolefin to form a skin-foam-skin structure, ensuring uniform cell size, high mechanical strength, and strong adhesion.
  • Parallel Pair Wrapping: Wrapping two insulated cores and a ground wire together with aluminum foil and polyester tape for shielding and structural stability. This step directly impacts impedance, skew, and attenuation.
  • Pair Cabling: Combining wrapped cores with polyester and aluminum foil tapes for overall shielding and consistency. This process determines overall cable performance.
  • Cable Braiding: Applying a metallic shielding mesh to enhance anti-interference performance. Braiding density and tension are strictly controlled for optimal shielding.
  • Outer Jacket Extrusion: Covering the braided or cabled core with polyolefin for protection. Jacket tightness is carefully controlled to ensure both appearance and performance.

We maintain comprehensive testing capabilities, including mechanical, environmental, and high-frequency performance tests, ensuring every step meets the highest quality standards.

3. Finished Products: Diverse High-Speed Cable Portfolio

Our product line covers a wide range of specifications to meet different application scenarios:

  • MINI SAS Cables: Ideal for high-density storage systems in enterprise solutions.
  • SAS Cables: Widely used in servers and data centers for high-performance computing.

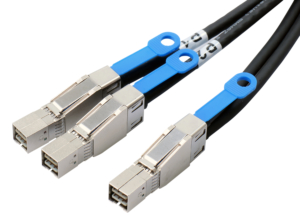

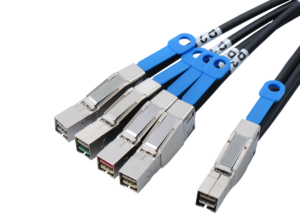

  • HD SFF8644 to SFF8644 Cables: Designed for high-speed external connections in bandwidth-intensive applications.
  • HD 8643 to 8643 Cables: Perfect for internal high-speed transmission, ensuring signal integrity.
  • SFP+ Cables: Supporting high-speed networking between switches and servers.

These cables are extensively applied in data centers, 5G base stations, consumer electronics, autonomous vehicles, and green energy. For example, in data centers, our cables support transmission rates up to 100Gbps, meeting modern demands. As data centers move toward 400G, our products continue to evolve to support higher Ethernet speeds, cloud computing, IoT, and virtualized infrastructure.

4. Manufacturer Strength: Innovation and Quality Assurance

As a High-Speed Cables Manufacturer, we boast a strong R&D team composed of scientists and engineers with extensive experience in high-speed, high-frequency, and optoelectronic products. We master core technologies in copper and optical cable transmission design and manufacturing.

We consistently invest in innovation and have obtained certifications including ISO9000:2008, RoHS, CE, FCC, and MFI. Our products cover a full range from 100Mbps to 40G, widely used in telecom systems, data networks, access networks, and metropolitan passive optical networks (PON).

Trusted by major computer manufacturers, high-speed server producers, data centers, system integrators, and global customers, we have achieved steady growth. Our R&D center is equipped with comprehensive testing capabilities for high-frequency transmission, mechanical and physical performance, and environmental durability, providing strong technical support for product design and manufacturing.

5. Market Recognition and Future Prospects

Today, autonomous driving, new energy vehicles, AI, and digital twins are becoming global technology frontiers. Inside these innovations, high-speed signal transmission cables act as the “nervous system” of smart products.

With the rapid development of 5G, IoT, “Made in China 2025,” and AI technologies, as well as the decreasing costs of renewable energy and storage, data center infrastructure will increasingly integrate with power grids and IT systems. As society transitions into a digital era, demand for high-speed cables will continue to grow.

In autonomous driving, higher requirements are placed on cable speed, reliability, and anti-interference. We have proactively invested in high-speed copper cable R&D and production, continuously launching new products to meet market needs.

6. Why Choose Us?

  • Direct Supply: Eliminating intermediaries for competitive pricing and full quality control.
  • Quality Assurance: International standards compliance and RoHS environmental certification.
  • Wide Applications: Covering servers, storage, data centers, and networking equipment.
  • Customization: Flexible lengths and connector types tailored to customer needs.

In this fast-paced digital era, we remain committed to innovation and quality, delivering superior solutions as a trusted High-Speed Cables Manufacturer. Whether for current 100G/200G requirements or future 400G/800G and beyond, we are fully prepared to provide reliable products and attentive service.

As a trusted High-Speed Cable Manufacturerhttp://www.wahsondg.com, we provide MINI SAS, SAS, HD, and SFP+ cables for servers and data centers. Our High-Speed Cable Manufacturer advantage lies in direct supply, strict quality control, and global customization. Choosing us as your High-Speed Cable Manufacturer means reliable performance, competitive pricing, and future-ready connectivity solutions.

/0 Comments/by

Mini sas cables SFF-8087 Working Principle

1. Mini SAS Technology Overview

The Mini SAS cables SFF-8087 Working Principle is the foundation of stable and efficient data transmission in modern servers and storage systems. By understanding the Mini SAS cables SFF-8087 Working Principle, enterprises can ensure reliable connectivity, low latency, and optimized performance for high-density applications. With advanced shielding and precise design, the Mini SAS cables SFF-8087 Working Principle delivers the speed and consistency required in today’s data-driven world.

Mini SAS (Serial Attached SCSI) is a high-speed serial interface standard used to connect servers, storage devices, and high-performance computing systems. It was designed to replace traditional parallel SCSI interfaces, improving data transfer efficiency and reliability through serial communication and point-to-point connections. The SFF-8087 is a common specification for internal Mini SAS connectors, supporting 4-lane data transmission and widely used for connections between server motherboards and hard drive backplanes

2. Working Principle of SFF-8087 Cables

2.1 Physical Structure & Pin Definitions

  • Multi-Lane Design: The SFF-8087 connector contains 36 pins. Each lane consists of 4 wires (one pair of transmit differential signals Tx+/-, and one pair of receive differential signals Rx+/-), totaling 16 wires for 4 lanes
  • Shielding Structure: The cable employs a parallel-pair design. Each signal pair is wrapped with an aluminum foil shield, and the overlapping rate (typically 30–40%) is controlled to reduce signal crosstalk
  • Conductor Material: To minimize the skin effect in high-frequency signals, SFF-8087 cables often use tinned copper conductors, supporting data rates of 6 Gbps

2.2 Differential Signal Transmission

  • Each lane uses two wires carrying opposite-phase signals. The receiver determines the data by comparing the voltage difference between the two signals. This design effectively cancels out common-mode noise, ensuring signal integrity
  • Full-duplex communication allows simultaneous transmission and reception on each lane, enhancing throughput efficiency

2.3 Electrical Characteristics & Performance

ParameterRequirements & Description
Data RateSupports 6 Gbps (SAS 2.0 standard), with a total aggregated bandwidth of 24 Gbps for 4 lanes
Impedance MatchingDifferential impedance must be stable at 100Ω ±10% to reduce signal reflection and attenuation
Attenuation ControlUses physically foamed insulation materials (e.g., PP/FEP) to maintain a low dielectric constant, ensuring stability for high-frequency signals

3. Workflow & Protocol Support

  1. Connection InitializationAfter power-on, the SAS controller identifies connected devices through the SCSI Management Protocol (SMP), negotiating data rates and lane aggregation
  2. Data Transmission
    • SSP Protocol: Used for transmitting SCSI command blocks, ensuring compatibility with SAS drives
    • STP Protocol: Provides a communication channel for SATA drives, allowing SAS controllers to manage SATA drives directly
    • Data is transmitted in parallel through the aggregated lanes of the Mini SAS cable and re-serialized at the receiving end
  3. Error Handling & Hot-SwappingThe cable supports hot-swapping. The connector uses a plastic latching mechanism to prevent accidental disconnection. The cable’s shielding is grounded to dissipate electrostatic interference

4. Key Manufacturing Process Points

  • Insulation Foaming Process: Cables for 6 Gbps often use chemically foamed polyethylene, ensuring a stable dielectric constant (foaming degree >45%
  • Wrap Accuracy Control: The aluminum foil wrap overlap rate must be strictly maintained between 30–40% to avoid shield gaps that could cause signal leakag
  • Thermal Setting: Uses a horizontal preheater to heat the self-adhesive polyester tape, ensuring the shielding layer is firmly bonded and preventing wire pair displacemen

5. Application Scenarios & Advantages

  • Applications: Primarily used for internal server connections (e.g., HBA cards to drive backplanes) and storage array expansion
  • Compatibility: Can be backward compatible with SATA drives, though requires protocol conversion via STP
  • Advantages: Full-duplex communication, high aggregated bandwidth, strong noise resistance, and a more compact design compared to external cables (e.g., SFF-8088), saving space inside chassis

Summary:

The Mini SAS SFF-8087 to SFF-8087 cable enables high-speed, reliable data transmission through differential signaling, multi-lane aggregation, and full-duplex communication. Its performance heavily relies on key technical parameters such as conductor material, shielding craftsmanship, and impedance matching. During production, strict control over wrap precision and insulation consistency is essential to ensure signal integrity meets the SAS 2.0 standard requirements

The Mini SAS cables SFF-8087 Working Principle ensures stable high-speed data transmission for servers and storage. With optimized shielding and low latency, the Mini SAS cables SFF-8087 Working Principle provides reliable connectivity in enterprise applications. Choosing our solutions means understanding the Mini SAS cables SFF-8087 http://www.wahsondg.com Working Principle for performance, compatibility, and long-term efficiency.

/0 Comments/by

What is a Mini SAS to SAS Cable?

What is a Mini SAS to SAS Cable?

A Mini SAS to SAS cable is a high‑performance connectivity solution designed to link servers, RAID controllers, and storage systems with speed and reliability. By supporting multi‑lane data transfer, these cables ensure consistent high‑speed performance, making them essential for enterprise environments where downtime is not an option. IT professionals worldwide trust Mini SAS to SAS cables because they combine compact design with robust compatibility, delivering seamless integration across a wide range of devices. Whether you are expanding a data center, building a cloud infrastructure, or upgrading enterprise storage, Mini SAS to SAS cables provide the dependable connection you need to keep critical systems running smoothly.

Mini SAS to SAS Cables: Definition and Function

A Mini SAS to SAS cable is a high‑speed data cable designed to connect hosts such as servers or RAID controllers to storage devices like hard disk drives. Built on the Serial Attached SCSI (SAS) protocol, it supports multi‑lane data transmission (typically 4 lanes), ensuring fast and stable performance in enterprise environments.

Key features include:

  • High Bandwidth: Supports transfer rates up to 6 Gbps (SAS 2.1) or 12 Gbps (SAS 3.0).
  • Compatibility: Connects both SAS and SATA drives, enabling hybrid storage configurations.
  • Integrated Power: Certain models include a built‑in SATA power line, simplifying cabling and eliminating extra power requirements.

Common Interface Types and Specifications:

Mini SAS to SAS cables are available in multiple interface combinations, each suited to specific applications:

Interface TypeFeaturesTypical Application
SFF‑8087 to SFF‑8482Host side: 36‑pin Mini SAS (SFF‑8087); Device side: 4 SAS targets (SFF‑8482). Often integrates power lines.Connects server motherboards to multiple SAS/SATA drives
SFF‑8087 to SFF‑8087Internal direct‑attach cable with Mini SAS connectors on both ends.Linking host adapters to backplanes for expansion or redundancy
SFF‑8643 to SFF‑8087High‑performance cable supporting SAS 3.0 (12 Gbps). Compatible with high‑density ports.Upgrading to 12 Gbps storage networks
SFF‑8643 to SFF‑8639 (U.2)Adapter cable for connecting U.2 NVMe SSDs.High‑speed solid‑state storage systems

Key Interface Notes:

  • SFF‑8087: Traditional 36‑pin Mini SAS connector, widely used in 6 Gbps SAS systems.
  • SFF‑8643: High‑density Mini SAS HD connector, SAS 3.0 compliant, supports 12 Gbps with smaller PCB footprint.
  • SFF‑8482: SAS device‑side connector, compatible with SATA drives.

Performance and Technical Requirements

  • Transfer Speed: Supports 6 Gbps (SAS 2.1) and 12 Gbps (SAS 3.0), depending on connector type. With 4‑lane parallel transmission, aggregate bandwidth is significantly increased.
  • Wire Gauge & Length: Typically 28–30 AWG. Lower AWG (e.g., 28 AWG) means thicker conductors, lower resistance, and reduced signal loss, though less flexible. Standard lengths range from 0.5m to 2m; shorter cables minimize signal attenuation, ideal for internal rack wiring.
  • Reliability Features: Some cables support sideband signals and EEPROM recognition, allowing automatic host optimization. Premium cables use tinned copper conductors and shielding layers to enhance EMI resistance.

Main Application Scenarios

  • Servers & Data Centers: Connecting drive backplanes, supporting multi‑drive RAID expansion.
  • Storage System Upgrades: Transitioning from 6 Gbps to 12 Gbps networks (e.g., SFF‑8643 to SFF‑8087).
  • FPGA Prototyping: Enabling high‑speed communication between hosts and FPGA systems for hardware/software co‑verification.
  • High Availability Architectures: Used in redundant setups (e.g., multiple adapters to disk enclosures) with specialized AA, X, or YO cables to ensure system uptime.

Buying Considerations:

  • Interface Matching: Verify host and device connector types (e.g., SFF‑8087 or SFF‑8643).
  • Speed Requirements: For 12 Gbps performance, choose SAS 3.0 compliant cables (SFF‑8643).
  • Length & Gauge: Shorter, thicker cables (28 AWG) provide better signal integrity but less flexibility.
  • Power Needs: For SATA drives, select models with integrated power lines to simplify cabling.
  • Quality Certification: Choose cables that meet industry standards (e.g., RoHS) and include warranty support.

Conclusion:

Mini SAS to SAS cables are critical components in modern storage infrastructures. Selecting the right cable—based on interface type, speed requirements, length, and reliability features—can significantly improve system performance and scalability. For enterprises expanding data centers or upgrading storage networks, investing in high‑quality Mini SAS to SAS cables ensures long‑term stability and efficiency.

/0 Comments/by
